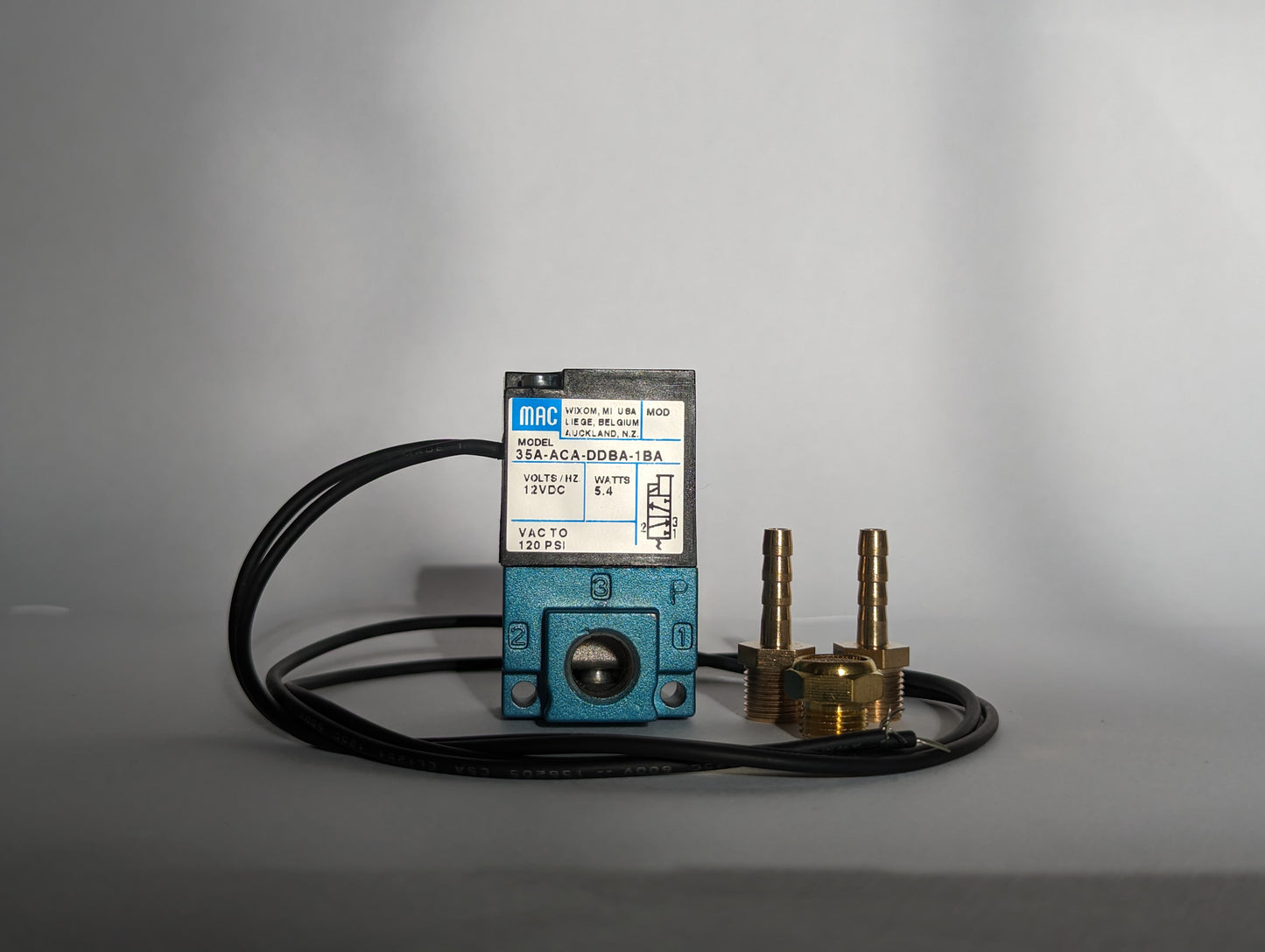

MAC 3 PORT BOOST SOLENOID

Brand: MAC

Part Number: 35A-ACA-DDBA-1BA

Type: 3 Port Solenoid. The most common method to control boost

12 Volts

5.4 Watts - 25.4 ohm coil (measured) - 45 amps @ 12 volts

Full vacuum to 120psi capable

10-30 hz compatible, other ranges suitable depending on application

PWM driven (Pulse Width Modulation)

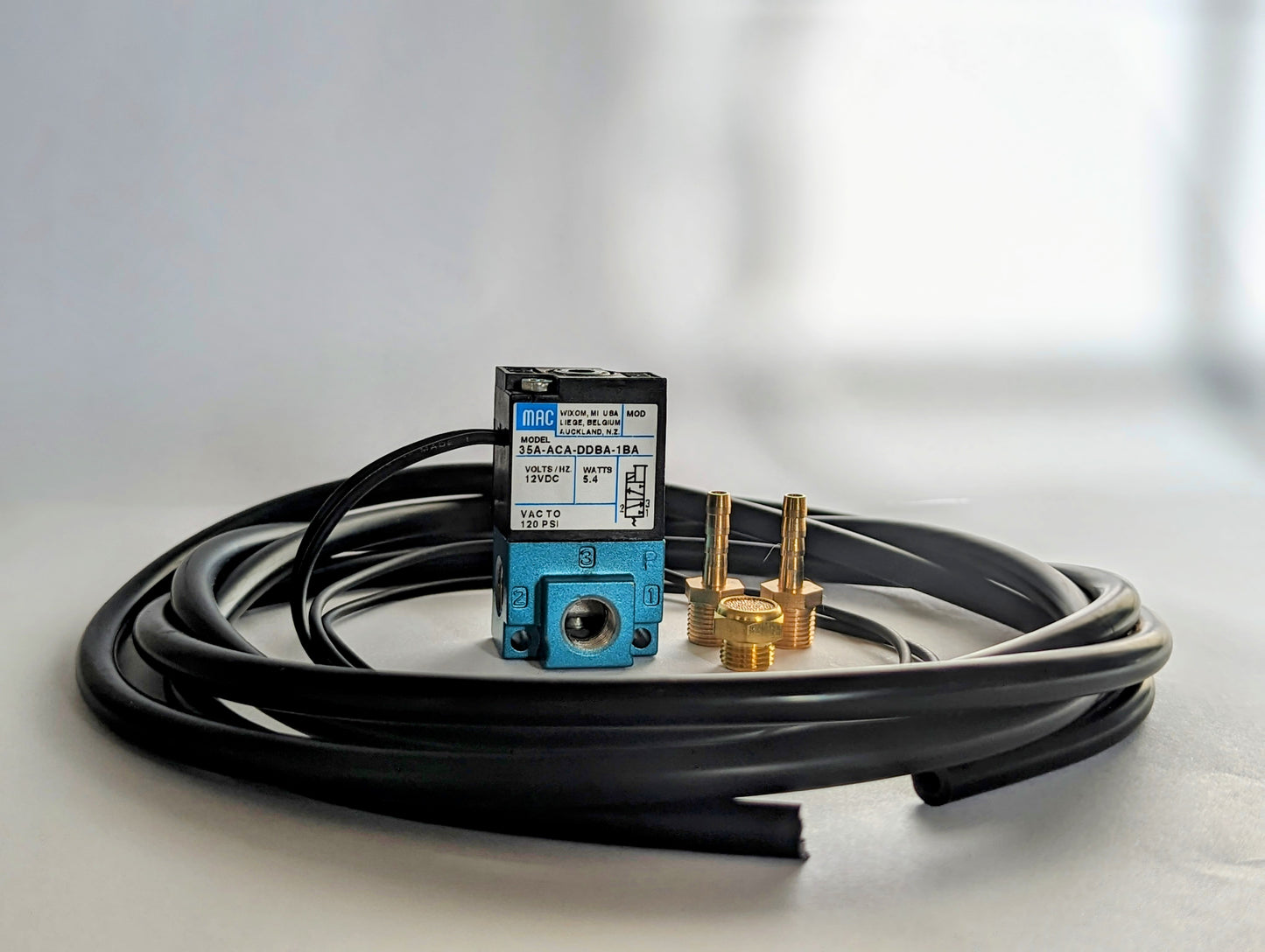

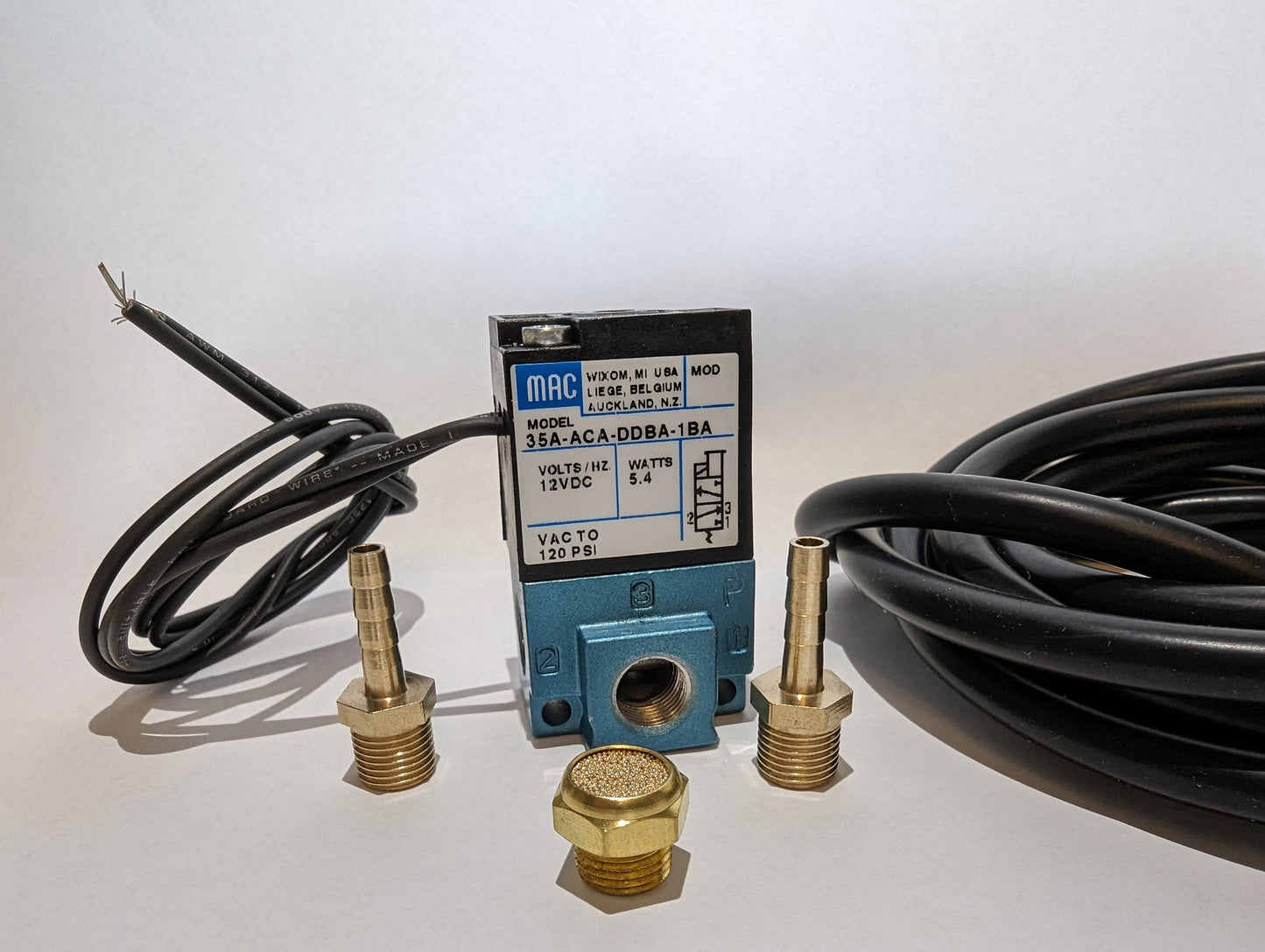

What's included -

• MAC 3 Port Boost Solenoid
• 2x 4mm Brass Tapered Thread Hose Tail
• 1x Bronze Sintered Silencer Air Muffler
• 2m of Silicone Vacuum Hose
